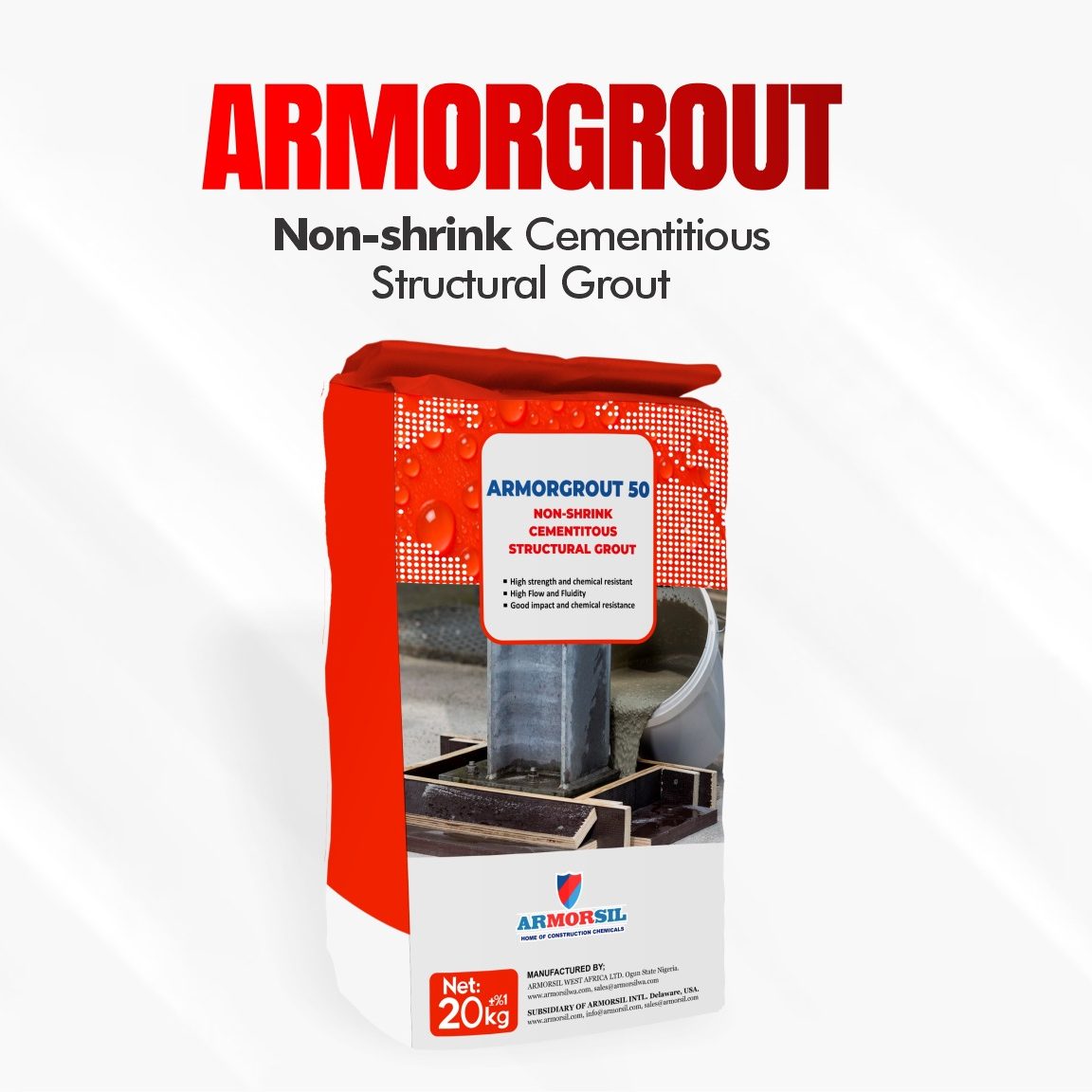

ARMORGROUT 50
NON-SHRINK CEMENTITIOUS STRUCTURAL GROUT
Product Description
ARMORGROUT-50 is a non-shrink cementitious structural grout containing expansion agents to prevent shrinkage while the product hardens. It is designed for grouting all kinds of machinery, steel columns, precast concrete, bearing plates and anchoring applications. ARMORGROUT-50 develops high early strength and ultimate strength at 28 days.
- Non-corrosive, therefore will not attack reinforcement
- Controlled expansion
- High strength and chemical resistant
- High Flow and Fluidity
- Good impact and chemical resistance
- Meets ASTM C1107
At standard water content, each bag of ARMORGROUT-50 will yield 9 Liters (0.45 cubic ft) of fluid, Consistent grout. The standard water content for ARMORGROUT-50 is 3 liters of water for a 20kg bag. Approximately 80-100 bags of ARMORGROUT-50 are required for 1 cubic meter of grout pour.
- Machinery bases and sole plates
- Anchor bolts
- Columns bases
- Pile cap re-profiling
- Gap filling and transfer lines
- Bridge bearing
- Pre-cast elements and other grouting conditions requiring high in-use strength
Grey powder when not mixed, and dark grey when mixed.
Materials are packed in 20kg bags. Shelf life is 12 months stored in cool, dry place in an unopened pack
Armorsil provides detailed method statements
on all its products for use in various applications.
Below is an information summary for guidance
As soon as the grouting is completed, it should be cured immediately. Suitable curing, such as a membrane and plastic sheet, should be used to protect freshly applied ARMORGROUT-50. Curing should continue for 7 days after pouring. Free water should be removed before pouring, and the grout should be poured continuously so as to ensure air is not trapped.
Conforms to the requirements of BS EN 934-2
Table 9
Appearance: White
This product is highly hazardous if not used appropriately, and it must be administered by trained and professional persons.
All recommendations, statements and technical data herein are based on tests we believe to be reliable and correct, but
accuracy and completeness of said tests are not guaranteed and are not to be construed as a warranty either expressed or
implied. User shall rely on his or her own information and tests to determine suitability of the product for the intended use and user assumes all risk and liability resulting from his or her use of the product. Nothing contained in any supplied materials relieves the user of the obligation to read and follow the warnings and instruction for each product as set forth in the current Technical Data Sheet, product label and Safety Data Sheet prior to product use away. Armorsil Manufacturing supplies products that comply with the properties shown on the current datasheets. In the unlikely event that products supplied are proved not to comply with these properties, then we will replace the non-compliant product or refund the purchase price. Armorsil Manufacturing does not warrant or guarantee the installation of the products as it does not have control over the installation or end use of the products. Any suspected defects must be reported to Armorsil Manufacturing in writing within seven working days of being detected. Armorsil Manufacturing. Makes no warranty as to merchantability or fitness for a particular purpose and this warranty is in lieu of all other warranties express or implied. Neither seller nor Armorsil Manufacturing shall be liable to the buyer or any third person for any injury, loss or damages of any sort including remote or consequential damages, down time, or delay directly or indirectly resulting from use of or inability to use the product. . The information contained in the latest data sheet supersedes all previously published editions. Visits to site by Armorsil personnel do not constitute supervisory responsibility. Armorsil reserves the right to alter the information contained in this datasheet without prior notice
